Radial spherical plain bearings GEEM 50 ES 2RS, Radial Spherical Plain Bearing - 50 mm Bore, 75 mm OD, 43 mm Inner Ring

Product Categories

JFZ BEARING CO.,LTD

Contact Now

Brand Name : ISB

Model Number : GEEM 50 ES 2RS

MOQ : 1

Price : USD 0.5-10 PCS

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000 PCS/MON

Delivery Time : 3-15 DAYS

Packaging Details : Single Box , Industrial Packing

Outer Ring Material : Steel

Inner Ring Material : Steel

Bearing Type : Radial

ENCLOSURE : Double Sealed

Contact Now

d	50 mm	Bore diameter
D	75 mm	Outside diameter
B	43 mm	Nominal width
C	28 mm	Width outer ring
α	4 °	Angle of tilt
dk	66 mm	Raceway diameter inner ring
d1	≈57 mm	Shoulder diameter cylindrical extension inner ring
b	4.6 mm	Width annular lubrication groove at outer ring
b1	4.8 mm	Width annular lubrication groove at inner ring
M	3 mm	Diameter lubrication hole (outer ring)
r1	min.0.6 mm	Chamfer dimension bore
r2	min.1 mm	Chamfer dimension outer ring

Radial spherical plain bearings GEEM 50 ES 2RS, Radial Spherical Plain Bearing - 50 mm Bore, 75 mm OD, 43 mm Inner Ring

Basic dynamic load rating	C	156 kN
Basic static load rating	C0	780 kN
Specific dynamic load factor	K	100 N/mm²
Specific static load factor	K0	500 N/mm²
Material constant	KM	330

Mass plain bearing

0.6 kg

Radial spherical plain bearings GEEM 50 ES 2RS, Radial Spherical Plain Bearing - 50 mm Bore, 75 mm OD, 43 mm Inner Ring

Packing , Payment , Delievry and Stock

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging	a)plastic tube + carton + pallet
	b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis

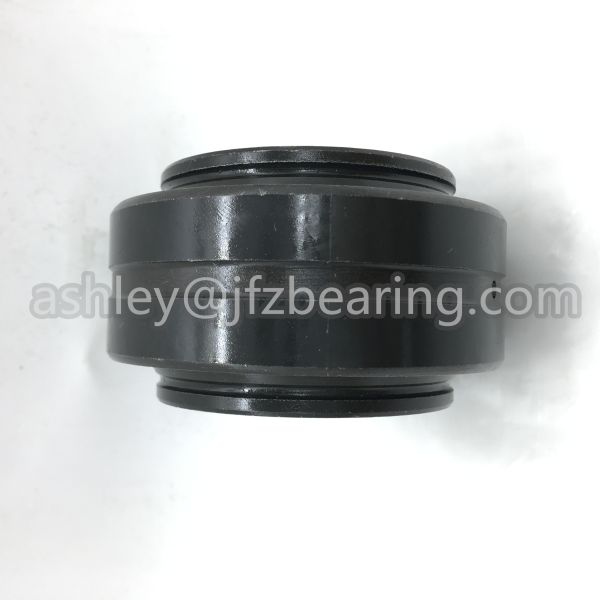

Radial spherical plain bearings GEEM 50 ES 2RS, Radial Spherical Plain Bearing - 50 mm Bore, 75 mm OD, 43 mm Inner Ring Images
